New Double t5 Integrated Tube
New Double t5 Integrated Tube
New Double t5 Integrated Tube

1. Size: 2ft 3ft 4ft 5ft 6ft 8ft
2. Wattages: 15w 25w 30w 40w 44w 60w
3. CCT: 3000K 4000K 5000K 5700K 6000K 6500K
4. Main Materials: Aluminum + PC
5. Input Voltage: AC100-277V / AC100-240V 50/60Hz
6. Certifications:  ETL, cETL, TUV, CE, SAA
7. Supply Ability: 50000PCS/Month
8. Payment Terms: T/T, Paypal


Product Description Video




Features

 One-piece Aluminum chassis

 Patent Male-female linkable design

 Seamless & No Dark in-line connection

 UL ETL TUV SAA approved, DLC Listed

 0.8mm aluminum housing for excellent heat dissipation

 Universal mounting standard. Come with integral hanging loops and with standard surface mounting application



Technical Specifications

 Input Voltage: AC100-277V  50/60Hz   /   AC100-240V  50/60Hz

 Total harmonic distortion: THD<19%

 Power Factor: PF>0.95

 Efficiency: 100-120LM/W

 Color Index: Ra>82

 IP Rating: IP40

 Switching Time: 100,000

 Lumen maintenance @6000h: >80%

 Operation Temperature: -20°C ~ +50°C



Applications

 Replaces T8/T12 fluorescent fittings

 Warehouses, factories & food storage

 Supermarket, shopping malls, Office

 Home, Hotel, Parking lot, garage etc



Product Display




Data Sheet

Item No.

Length

Power

LED type

LED QTY

Luminous

 flux(LM)

CRI

Package

LY-T5SL600-15W

2ft/600mm

15W

SMD2835

108pcs

1500-1800lm

>82

735*235*190mm;20pcs/ctn

LY-T5SL900-25W

3ft/900mm

25W

SMD2835

168pcs

2500-3000lm

>82

1045*235*190mm;20pcs/ctn

LY-T5SL1200-30w

4ft/1200mm

30w

SMD2835

220pcs

3000-3600lm

>82

1345*235*190mm;20pcs/ctn

LY-T5SL1500-40W

5ft/1500mm

40W

SMD2835

288pcs

4000-4800lm

>82

1645*235*155mm;20pcs/ctn

LY-T5SL1800-44W

6ft/1800mm

44W

SMD2835

336pcs

4400-5280lm

>82

1915*235*155mm;9pcs/ctn

LY-T5SL2400-60W

8ft/2400mm

60W

SMD2835

440pcs

6000-7200lm

>82

2520*180*120mm;9pcs/ctn

Please be noted that Not all products are qualified on the DLC QPL.  To view our DLC qualified products,

please consult the DLC qualified Products List at  www.designlights.org/search.



Options

-Fuctions: Normal / Triac Dimmable

-Connection Way: Lead in wire / M-F Connection / Power cord with Plug

-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits



Product line drawing                                                        Light distribution curve

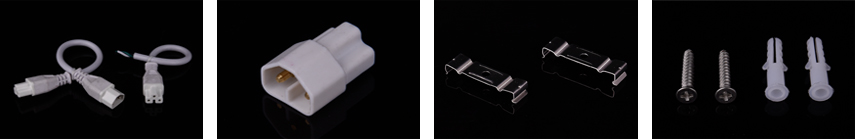

Standard Accessories

One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...

(Length for power cord or connection cable can be customized)
