T5 Led Integrated Tube Light
T5 Led Integrated Tube Light
T5 Led Integrated Tube Light

1. Size: 2ft 3ft 4ft 5ft 6ft 8ft
2. Wattages: 7w 12w 15w 20w 22w 30w
3. CCT: 3000K 4000K 5000K 6000K 6500K
4. Cover: Frosted or Clear
5. Main Materials: Aluminum + PC
6. Input Voltage: AC100-277V / AC100-240V 50/60Hz
7. Certifications: UL ETL TUV SAA CE
8. Supply Ability: 50000PCS/Month
9. Payment Terms: T/T, Paypal

Product Description Video


Features
● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● UL ETL TUV SAA CE approved, DLC Listed
● 0.8mm aluminum housing for excellent heat dissipation
● Heat protection system with excellent internal driver
● Easy replacement and installation with brackets

Applications
● Replaces fluorescent NCF fittings,
● Warehouses, factories & food storage,gymnasium
● Car parks & sports facilities, Kitchens,shopping malls


Technical Specifications
● Input Voltage: AC100-277V / AC100-240V 50/60Hz
● Total harmonic distortion: THD<19%
● Power Factor: PF>0.95
● Efficiency: 120-140LM/W
● Color Index: Ra>82
● IP Rating: IP40
● Life Span: 50,000 hours
  Lumen maintenance @6000h: >80%
● Switching Time: 100,000
● Operation Temperature: -20°C ~ +50°C


Item No.

Length

Power

LED type

LED QTY

Power Factor

Luminous flux(LM)

CRI

Package

LY-T5DL600-7W

2ft/600mm

7W

SMD2835

52pcs

PF>0.95

840-980lm

>82

780*175*230mm;25pcs/ctn

LY-T5DL900-12W

3ft/900mm

12W

SMD2835

84pcs

PF>0.95

1440-1680lm

>82

1085*175*230mm;25pcs/ctn

LY-T5DL1200-15W

4ft/1200mm

15w

SMD2835

108pcs

PF>0.95

1800-2100lm

>82

1390*175*230mm; 25pcs/ctn

LY-T5DL1500-20W

5ft/1500mm

20W

SMD2835

144pcs

PF>0.95

2400-2800lm

>82

1690*175*230mm;25pcs/ctn

LY-T5DL1800-22W

6ft/1800mm

22W

SMD2835

168pcs

PF>0.95

2640-3080lm

>82

1955*175*190mm;20pcs/ctn

LY-T5DL2400-30W

8ft/2400mm

30W

SMD2835

216pcs

PF>0.95

3600-4200lm

>82

2565*175*145mm;15pcs/ctn

 Please be noted that Not all products are qualified on the DLC QPL.  To view our DLC qualified products,please consult the DLC qualified Products List at  www.designlights.org/search.


Options
-Fuctions: Normal / Triac Dimmable / ON-OFF Switch
-Connection Way: Lead in wire / M-F Connection / Power cord with Plug
-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits


Product line drawing                                                              Light distribution curve

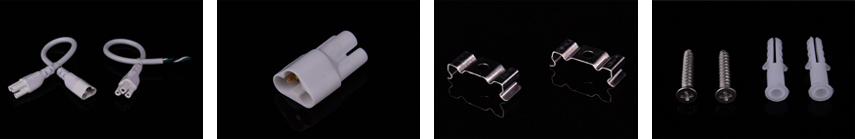

Standard Accessories

Length for power cord or connection cable can be customized.
